Nɛ̄ bɛ́ yɔ́ɔ́ nɛ́ mɛ́ lɛ̀ kɛ́ sɔ́ɔ̀ nɛ́ wàá tɔ́ steel silo, grain dryer nɛ́ grain storage system kpáá?

Grain storage system yɛ́ nɛ́ silo kpɛ́lɛ́ kpɛ́lɛ́ nɛ́ grain dryer kɛ́kɛ́ nɔ́. System nɛ́ wɔ́ yɔ́ɔ́ nɛ́ yɛ́ yie nɔ́, ɛ̀fàá gbogbo process nɔ́ — fī wet grain gbigba, cleaning, drying, transport, storage, ventilation, temperature control títí dé loading silo.

Sɛ́ grain dryer nɔ́ má yɛ́ yie, ventilation yɛ́ mmerɛ́w, tàbí conveying system nɔ́ má dáa a, ɛ̀bɛ́ fàá:

• Grain spoilage,

• Mold nɛ́ fungus,

• Aflatoxin,

• Fuel consumption kɛse,

• Sika yera kɛse.

Ɛ̀nɛ̀ nti system nɔ́ nyinaa yè kàà sɛ́ integrated system baako.

1. GRAIN SYSTEM NƆ́ WORKFLOW

Modern grain facility mu process nɔ́ yɛ́:

Wet grain receiving → Pre-cleaning → Wet grain silo → Grain dryer → Cooling → Dry grain conveying → Storage silos → Ventilation nɛ́ temperature monitoring → Loading silo → Truck loading

2. WET GRAIN RECEIVING

Harvest akyire no, grain nɔ́ tɔ́ɔ́ moisture pii.

Mfatoho:

• Corn: 20–35%

• Wheat: 14–18%

• Sunflower: 10–16%

• Soybean: 14–20%

Truck tàbí tractor trailer nà ɛ̀de grain bɛ́. Wɔ́kààri grain nɔ́, wɔ́kyerɛw no, afei wɔ́gu gu receiving pit.

Nɛ́ bɛ́ hwɛ:

• Moisture level,

• Dirt nɛ́ foreign materials,

• Broken grain,

• Dust, straw nɛ́ stones,

• Sɛ́ ɛ̀fà drying.

3. RECEIVING PIT

Ɛ̀hɔ́ nà grain nɔ́ hyɛ́ aseɛ gu.

Receiving pit pa bɛ́ yɔ́ɔ́:

• High capacity,

• Strong steel grates,

• Chain conveyor tàbí screw conveyor,

• Rain protection,

• Easy cleaning,

• Big truck access.

4. PRE-CLEANING SYSTEM

Wet grain má kɔ́ direct grain dryer mu.

Ɛ̀tumi yɔ́ɔ́:

• Dust,

• Straw,

• Husks,

• Stones,

• Broken grain.

Pre-cleaning nɔ́:

• Ma drying yɛ́ yie,

• Tew fuel consumption so,

• Tew fire risk so,

• Ma drying yɛ́ uniform.

5. WET GRAIN SILO

Continuous-flow drying system mu no, wet grain silo ho hia paa.

Wɔ́de sie grain temporary ansa na drying.

Nɛ́ ɛ̀ho hia:

• Grain má ntena hɔ kyɛ,

• Ventilation bɛ́ yɔ́ɔ́,

• Blockage má yɔ́ɔ́,

• Capacity nɔ́ bɛ́ hyia dryer,

• Overheating má yɔ́ɔ́.

6. ELEVATORS NƐ́ CONVEYING SYSTEMS

Wɔ́de nɛ́ yi transport grain:

• Bucket elevators,

• Chain conveyors,

• Screw conveyors,

• Belt conveyors,

• Distribution systems,

• Overhead conveyors,

• Bottom discharge systems.

System capacities nyinaa bɛ́ hyia.

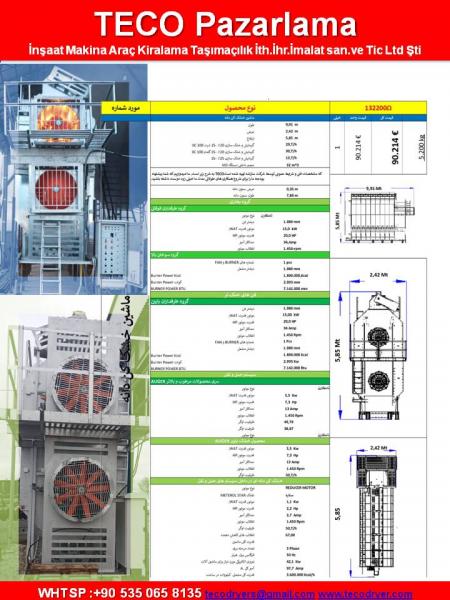

7. GRAIN DRYER

Grain dryer nɔ́ yɛ́ system nɔ́ akoma.

Adwuma nɔ́ yɛ́ sɛ́ ɛ̀yi moisture fi grain mu denam hot air so.

Grain dryer pa bɛ́ yɔ́ɔ́:

• Continuous-flow technology,

• Low fuel consumption,

• Uniform drying,

• Efficient airflow distribution,

• Integrated cooling section,

• Automatic temperature control,

• PT100 sensors,

• PLC automation,

• Powerful fans,

• Safe burner systems,

• Easy maintenance,

• Modular design.

Ɛ̀ho hia paa sɛ́ ɛ̀tumi dry corn a moisture yɛ́ 30–35% a ɛ̀renhyew grain.

8. SƐ́NƐ́ GRAIN TUMI MOVE INSIDE DRYER?

Elevator nɔ́ fa grain kɔ́ soro, afei ɛ̀ba fam nkakrankakra.

Distribution section

Grain nɔ́ spread pɛpɛɛpɛ.

Heating section

Hot air nɔ́ yi moisture no.

Stabilization section

Moisture fi inside kernel no mu ba outside.

Cooling section

Wɔ́ma grain nɔ́ yɛ́ cool ansa na storage.

Discharge system

Dry grain no fi mu controlled way mu.

9. FUEL SYSTEM

Grain dryers tumi de:

• LPG,

• Natural gas,

• LNG,

• Diesel yɛ́ adwuma.

Sɛ́ woretɔ system a, nyɛ machine price nkutoo na hwɛ. Hwɛ operating cost nso.

Efficient system:

• Tew gas consumption,

• Tew operating cost,

• Ma profit yɛ́ kɛse.

10. AUTOMATION NƐ́ CONTROL

Modern facility bɛ́ yɔ́ɔ́ automated.

System no control:

• Product flow,

• Fans,

• Burners,

• Temperature,

• Moisture,

• Conveyors,

• Alarm systems,

• Safety systems.

11. DRY GRAIN TRANSPORT TO STORAGE SILOS

Drying akyire no, wɔ́de grain no kɔ́ silos denam:

• Elevators,

• Chain conveyors,

• Distribution systems.

12. STEEL STORAGE SILOS

Steel silos ma safe long-term storage.

Silo pa bɛ́ yɔ́ɔ́:

• High-quality galvanized steel,

• Strong structure,

• Wind nɛ́ snow resistance,

• Ventilation systems,

• Temperature monitoring,

• Efficient unloading systems.

13. VENTILATION SYSTEM

Ventilation ho hia paa.

Ɛ̀boa:

• Prevent overheating,

• Balance moisture,

• Reduce mold,

• Reduce insects,

• Reduce aflatoxin risk.

14. TEMPERATURE MONITORING

Large silos bɛ́ yɔ́ɔ́ temperature monitoring systems.

Temperature a ɛ̀rekɔ soro no betumi akyerɛ:

• Excess moisture,

• Insects,

• Mold beginning,

• Poor ventilation.

15. SILO DISCHARGE SYSTEM

Systems a wɔ́de di dwuma:

• Central outlet,

• Bottom screws,

• Chain conveyors,

• Elevators,

• Loading silo.

16. LOADING SILO

Loading silo boa ma truck loading yɛ́ ntɛm.

Mfasoɔ:

• Reduce waiting time,

• Faster loading,

• Better logistics.

17. IMPORTANT QUESTIONS BEFORE BUYING

Buyer no bɛ́ bisa:

• How many tonnes per day?

• Grain type bɛn?

• Incoming moisture level yɛ́ sɛ́n?

• Final moisture level yɛ́ sɛ́n?

• Dryer capacity bɛn na ɛ̀ho hia?

• Wet grain silo ho hia anaa?

• Storage capacity yɛ́ sɛ́n?

• Ventilation dɔɔso anaa?

• Temperature monitoring wɔ́ hɔ anaa?

• Spare parts wɔ́ hɔ anaa?

• Technical support wɔ́ hɔ anaa?

18. MAIN EQUIPMENT IN COMPLETE GRAIN SYSTEM

• Receiving pit

• Bucket elevators

• Chain conveyors

• Screw conveyors

• Pre-cleaning machine

• Wet grain silo

• Grain dryer

• Burner

• Fans

• Automation control panel

• Dry grain conveying systems

• Steel storage silos

• Ventilation systems

• Temperature sensors

• Discharge systems

• Loading silo

• Electrical nɛ́ automation systems

• Platforms nɛ́ ladders

19. CONCLUSION

Successful grain storage system nnyina machines akɛse nkutoo so. Ɛ̀gyina proper integration of all systems so.

Efi wet grain entering facility no kosi safe dry grain leaving loading silo no, step biara bɛ́ yɔ́ɔ́ properly engineered.

High-quality system:

• Protect grain quality,

• Save fuel,

• Reduce operating costs,

• Provide safe storage,

• Reduce aflatoxin risk,

• Increase profitability.
